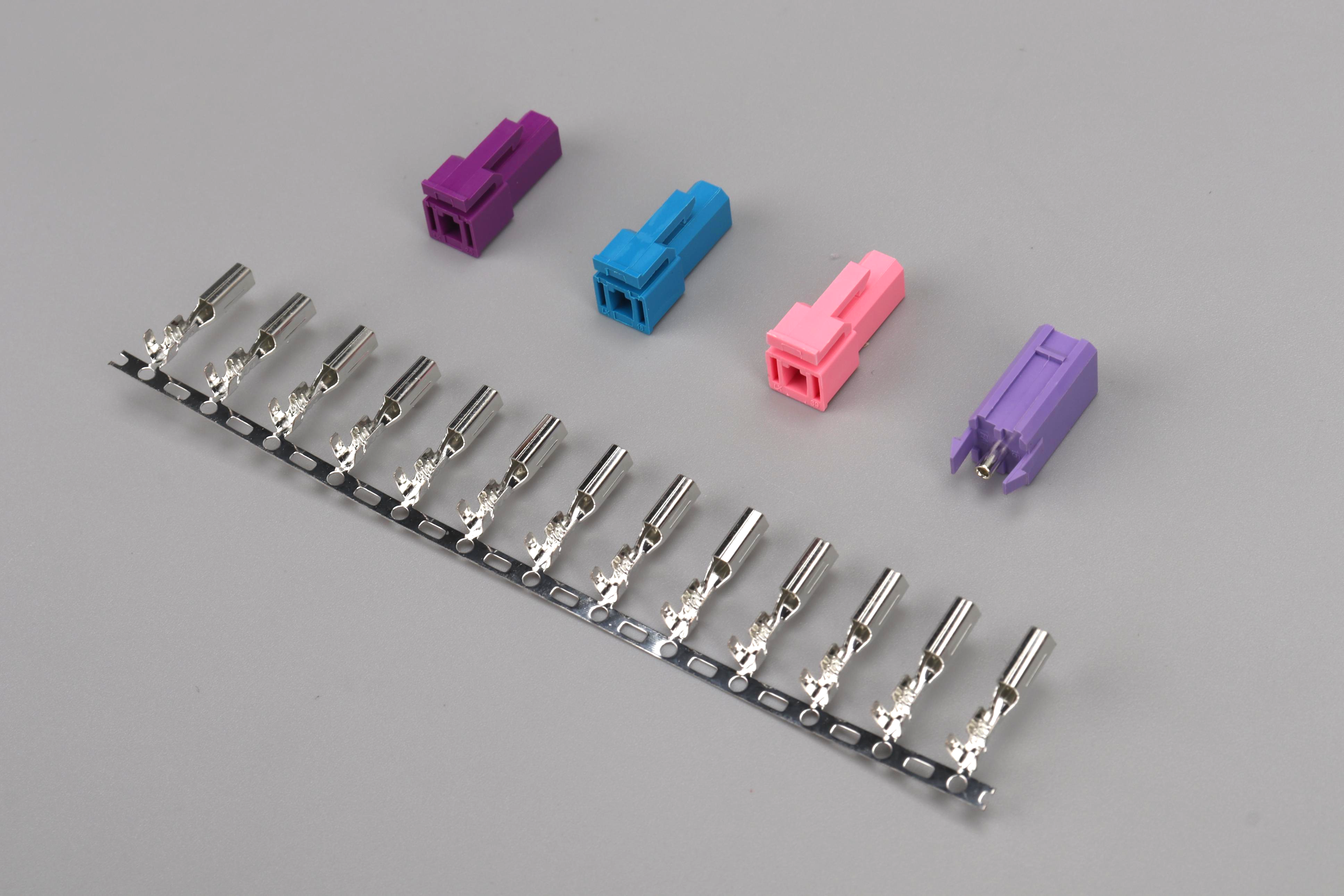

Understanding the Critical Role of JST Connectors in Modern Electronics
In the ever-evolving world of electronic design, selecting the appropriate connector system can make or break a project's success. JST connectors have become an indispensable component in electronic engineering, offering reliable solutions for various applications from consumer electronics to industrial machinery. These versatile interconnect solutions provide secure electrical connections while maintaining compact form factors that modern devices demand.
Engineers across industries rely on JST connectors for their robust design and proven reliability. Whether developing prototype boards, manufacturing consumer devices, or building industrial equipment, understanding the intricacies of JST connector selection is crucial for achieving optimal performance and longevity in electronic projects.
Essential Factors in JST Connector Selection
Physical Specifications and Space Constraints
When selecting a JST connector, physical dimensions play a pivotal role in the decision-making process. Engineers must carefully consider the available space within their design and ensure the chosen connector fits properly. This includes evaluating the pitch size, which typically ranges from 1.0mm to 5.08mm, and the overall connector footprint.
The mounting style also demands attention, as JST connectors come in various configurations including through-hole, surface mount, and wire-to-board options. Each mounting method has its advantages and specific space requirements that need to be factored into the design phase.
Electrical Requirements and Performance Parameters
The electrical specifications of JST connectors are fundamental to their selection. Current rating, voltage requirements, and the number of circuits needed must align with the project's electrical demands. Most JST connector series can handle currents ranging from 1A to 10A, with voltage ratings typically between 50V to 250V AC/DC.
Signal integrity considerations become particularly important in applications involving high-speed data transmission or sensitive analog signals. Engineers should evaluate factors such as contact resistance, insulation resistance, and withstanding voltage when choosing the appropriate JST connector series.
Popular JST Connector Series and Their Applications
XH Series: Versatile and Widely Used
The XH series represents one of the most commonly utilized JST connector families. With a 2.5mm pitch, these connectors offer excellent reliability for general-purpose applications. They're particularly popular in hobby electronics, consumer products, and industrial control systems due to their balanced combination of size and current handling capability.
XH connectors feature a positive locking mechanism that prevents accidental disconnection while maintaining easy insertion and removal. Their through-hole mounting style provides robust mechanical stability, making them suitable for applications where vibration resistance is necessary.
PH Series: Compact Solution for Modern Devices
For designs where space is at a premium, the PH series offers a compact 2.0mm pitch solution. These connectors are frequently found in mobile devices, wearable technology, and other miniaturized electronics. Their low-profile design doesn't compromise on performance, supporting currents up to 2A per contact.
The PH series features JST's signature positive locking mechanism while maintaining a significantly smaller footprint compared to the XH series. This makes them ideal for battery connections in portable devices and other applications where space optimization is crucial.
Environmental Considerations and Durability
Temperature and Climate Resistance
Environmental factors significantly impact connector performance and longevity. JST connectors are designed to operate across various temperature ranges, typically from -25°C to +85°C for standard applications. Some specialized series can handle extended temperature ranges for more demanding environments.
Humidity resistance and protection against environmental contaminants are crucial considerations, especially for outdoor or industrial applications. Engineers should evaluate the IP rating requirements and choose connectors with appropriate sealing characteristics when necessary.
Mechanical Durability and Lifecycle Requirements
The mechanical durability of JST connectors varies by series and should match the expected lifecycle of the device. Most JST connectors are rated for 30 to 50 insertion/withdrawal cycles, while some specialized series can withstand hundreds of mating cycles.
Vibration resistance and shock tolerance become critical in automotive, industrial, or portable applications. The connector's locking mechanism and mounting style should be selected based on these mechanical stress factors to ensure reliable long-term performance.
Cost Considerations and Supply Chain Management
Budget Analysis and Volume Planning
Cost considerations extend beyond the unit price of JST connectors. Engineers must evaluate the total cost of ownership, including assembly time, potential rework requirements, and long-term reliability implications. Volume pricing and minimum order quantities can significantly impact project budgets.
Different JST series come with varying price points, and selecting the most cost-effective solution requires balancing performance requirements with budget constraints. Consider both immediate and long-term costs when making the final selection.
Supply Chain Reliability and Availability
Securing a stable supply chain for JST connectors is crucial for project success. Engineers should consider the availability of connectors and their mating components from multiple suppliers to avoid potential production delays.
Working with authorized distributors ensures access to genuine JST products and proper technical support. This becomes particularly important when dealing with high-volume production or specialized applications requiring specific connector variants.
Frequently Asked Questions
What are the key differences between JST-XH and JST-PH connectors?
The main differences lie in their physical dimensions and current ratings. JST-XH connectors have a 2.5mm pitch and typically handle higher currents (up to 3A), while JST-PH connectors feature a 2.0mm pitch and are rated for up to 2A. XH series are generally more robust and commonly used in larger devices, while PH series are preferred for compact, space-constrained applications.
How can I ensure I'm using genuine JST connectors?
To ensure authenticity, always purchase JST connectors from authorized distributors or directly from JST. Genuine connectors will have consistent quality, proper markings, and packaging. Working with authorized sources also provides access to technical support and documentation.
Are JST connectors suitable for outdoor applications?
While standard JST connectors are designed for indoor use, certain series are available with enhanced environmental protection for outdoor applications. When selecting connectors for outdoor use, look for models with appropriate IP ratings and consider additional environmental protection measures such as strain relief and proper sealing.
