What Should Global Buyers Look for in Reliable Board to Board Connectors?

In today's rapidly evolving electronics industry, the demand for compact and efficient interconnect solutions has never been higher. Engineers and procurement professionals across the globe are constantly seeking components that deliver exceptional performance while maintaining cost-effectiveness and reliability. Among the critical components that enable seamless electronic device functionality, board to board connectors stand out as essential elements that bridge the gap between separate circuit boards within a single system. These specialized connectors facilitate power transmission, signal integrity, and data communication between multiple PCBs, making them indispensable in applications ranging from consumer electronics to industrial automation systems.

The selection process for board to board connectors requires careful consideration of multiple technical specifications and operational requirements. Global buyers must navigate through various connector types, pitch sizes, current ratings, and mounting configurations to identify solutions that align with their specific application needs. Understanding the fundamental characteristics of these interconnect solutions becomes crucial for making informed purchasing decisions that impact both short-term project success and long-term product reliability. The complexity of modern electronic systems demands connectors that can handle increasingly higher data rates, power densities, and mechanical stresses while maintaining consistent performance across diverse environmental conditions.

Understanding Core Technical Specifications

Pitch Dimensions and Contact Arrangements

The pitch dimension represents one of the most critical parameters when evaluating board to board connectors for specific applications. This measurement, typically expressed in millimeters, defines the center-to-center distance between adjacent contacts within the connector housing. Common pitch sizes range from ultra-fine 0.4mm configurations used in high-density mobile applications to standard 2.54mm pitches found in traditional industrial systems. The selection of appropriate pitch dimensions directly impacts the connector's current carrying capacity, signal integrity performance, and overall mechanical robustness.

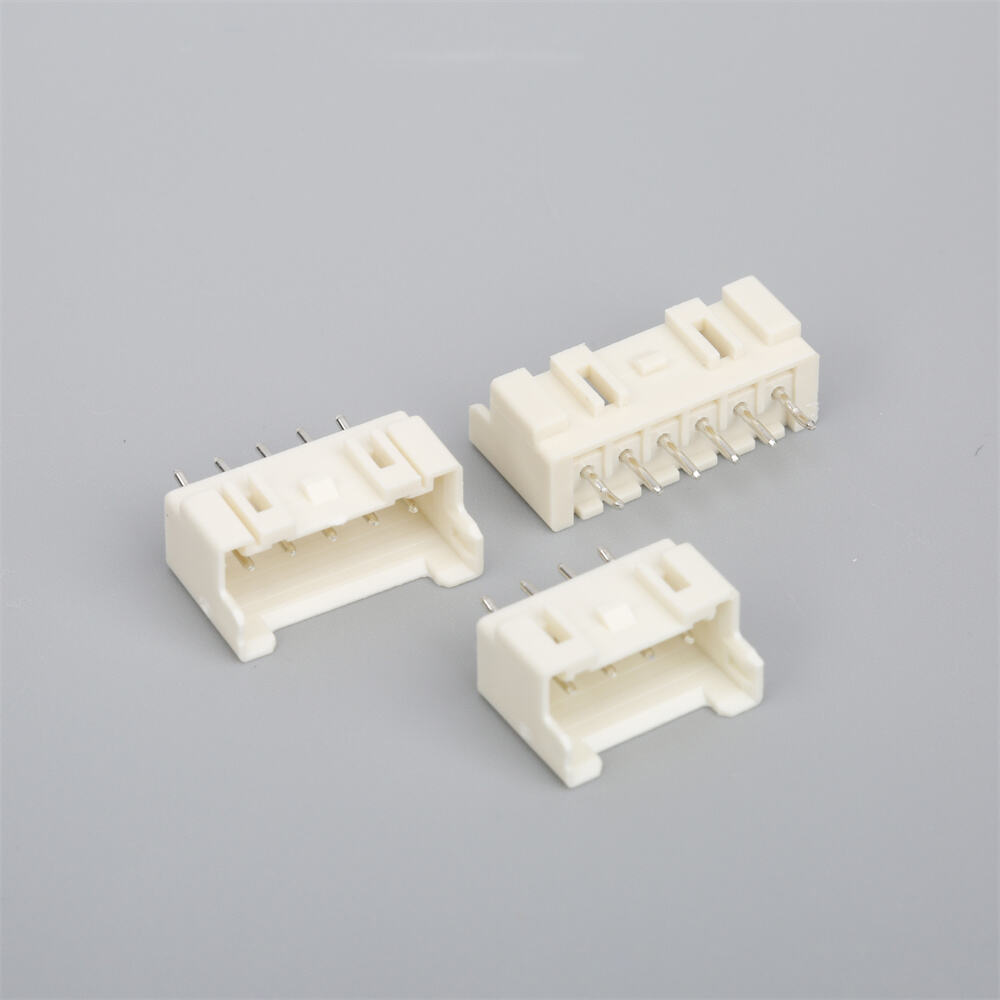

Contact arrangements within board to board connectors vary significantly based on application requirements and space constraints. Single-row configurations offer simplicity and cost-effectiveness for basic interconnect needs, while dual-row and multi-row arrangements provide higher contact density within limited board real estate. The contact count per connector can range from as few as two positions for simple power connections to several hundred positions for complex data processing applications. Understanding the relationship between contact density and thermal management becomes essential for ensuring reliable long-term operation.

Current and Voltage Ratings

Electrical ratings form the foundation of connector selection criteria, with current and voltage specifications determining the connector's suitability for specific power requirements. Current ratings for board to board connectors typically range from milliamperes for signal applications to several amperes per contact for power distribution. The relationship between contact size, plating materials, and thermal dissipation characteristics directly influences the maximum current capacity. Buyers must consider not only the nominal current requirements but also potential surge conditions and derating factors based on ambient temperature and contact count.

Voltage ratings encompass both working voltage and dielectric withstand voltage specifications. Working voltage represents the maximum continuous voltage that can be applied across contacts under normal operating conditions, while dielectric withstand voltage indicates the connector's ability to resist electrical breakdown during testing or transient conditions. These specifications become particularly critical in applications involving high-speed digital signals, where signal integrity and electromagnetic interference considerations require careful attention to insulation materials and contact geometry.

Material Selection and Plating Options

Contact Material Considerations

The choice of contact materials significantly impacts the performance and longevity of board to board connectors across various operating environments. Phosphor bronze remains a popular base material due to its excellent spring properties and cost-effectiveness, while beryllium copper offers superior conductivity and fatigue resistance for demanding applications. The selection between these materials often depends on the required insertion force characteristics, mating cycle requirements, and environmental exposure conditions expected during the product lifecycle.

Contact plating options provide critical protection against corrosion and enhance electrical performance through improved conductivity and reduced contact resistance. Gold plating represents the premium option, offering exceptional corrosion resistance and stable contact resistance over extended periods. The thickness of gold plating, typically specified in microinches or microns, affects both performance and cost considerations. Alternative plating options include tin, silver, and various alloy combinations, each offering specific advantages for particular application requirements and cost constraints.

Housing Materials and Environmental Protection

Housing materials for board to board connectors must provide adequate mechanical protection while maintaining dimensional stability across varying temperature and humidity conditions. High-temperature thermoplastics such as PPS (polyphenylene sulfide) and LCP (liquid crystal polymer) offer excellent thermal resistance and dimensional stability for demanding applications. These materials typically exhibit glass transition temperatures exceeding 200°C, making them suitable for reflow soldering processes and high-temperature operating environments.

Environmental protection capabilities extend beyond basic material selection to include specialized features such as sealed configurations and enhanced ingress protection ratings. Sealed board to board connectors incorporate gaskets or overmolded designs to prevent contamination from dust, moisture, and other environmental hazards. The IP (Ingress Protection) rating system provides standardized classification for environmental protection levels, with higher ratings indicating superior protection against solid particles and liquid ingress.

Mechanical Design and Mounting Configurations

Mating Height and Stack Height Considerations

Mating height represents a crucial dimensional parameter that determines the separation distance between connected circuit boards. This specification directly impacts the overall system thickness and mechanical stability of the interconnect solution. Standard mating heights for board to board connectors range from ultra-low profile configurations under 1mm to high-profile versions exceeding 20mm for specialized applications. The selection of appropriate mating height must balance space constraints with mechanical robustness and accessibility requirements for manufacturing and service operations.

Stack height tolerance becomes increasingly important as mating heights decrease and system integration density increases. Precise control of stack height ensures proper contact engagement and prevents overstressing of the connector or circuit board assemblies during mating operations. Manufacturing tolerances, thermal expansion characteristics, and assembly variations all contribute to the overall stack height budget that must be carefully managed during the design phase.

Mounting Methods and PCB Compatibility

Surface mount technology (SMT) has become the predominant mounting method for modern board to board connectors due to its compatibility with automated assembly processes and space-efficient design characteristics. SMT connectors feature specially designed terminations that enable reliable solder joint formation during reflow soldering processes. The termination design must accommodate thermal expansion stresses while maintaining electrical continuity and mechanical integrity throughout the expected service life.

Through-hole mounting remains relevant for applications requiring enhanced mechanical strength or simplified assembly processes. Through-hole board to board connectors provide superior pull-out resistance and can accommodate higher mechanical stresses compared to their surface mount counterparts. The selection between mounting methods often depends on the specific application requirements, assembly capabilities, and cost considerations associated with PCB design and manufacturing processes.

Signal Integrity and High-Speed Performance

Impedance Control and Signal Transmission

Signal integrity considerations become paramount when selecting board to board connectors for high-speed digital applications. Characteristic impedance matching between the connector and transmission line structures ensures minimal signal reflections and maintains signal quality across the interconnect interface. Controlled impedance connectors feature precisely engineered contact geometries and dielectric materials to achieve specified impedance values, typically 50 ohms for single-ended signals or 100 ohms for differential pairs.

Crosstalk performance represents another critical aspect of high-speed connector design, particularly in dense multi-signal applications. Advanced connector designs incorporate shielding structures, optimized contact spacing, and specialized dielectric materials to minimize electromagnetic coupling between adjacent signal paths. The measurement and specification of near-end crosstalk (NEXT) and far-end crosstalk (FEXT) parameters provide quantitative measures of connector performance in multi-signal environments.

Bandwidth and Data Rate Capabilities

The bandwidth capabilities of board to board connectors determine their suitability for specific data transmission requirements. Modern high-speed connectors must support data rates ranging from several gigabits per second to over 100 Gbps for cutting-edge applications. The relationship between connector geometry, material properties, and signal integrity performance becomes increasingly complex as operating frequencies increase into the multi-gigahertz range.

Return loss characteristics provide insight into how effectively a connector maintains impedance continuity across the operating frequency range. Poor return loss performance can result in signal reflections that degrade eye diagram quality and increase bit error rates in digital communication systems. Specification and measurement of return loss parameters enable designers to evaluate connector suitability for specific bandwidth requirements and system performance targets.

Quality Standards and Certification Requirements

International Standards Compliance

Global buyers must ensure that selected board to board connectors comply with relevant international standards and certification requirements for their target markets. The IEC (International Electrotechnical Commission) 61076 series provides comprehensive specifications for electronic connectors, including detailed requirements for electrical, mechanical, and environmental performance characteristics. Compliance with these standards ensures product compatibility, safety, and reliability across different geographical markets and application domains.

Regional certification requirements may impose additional testing and documentation obligations beyond basic international standards. UL (Underwriters Laboratories) recognition provides important safety certification for North American markets, while CE marking indicates compliance with European Union safety and electromagnetic compatibility directives. Understanding the specific certification requirements for target markets enables buyers to make informed decisions and avoid potential regulatory complications during product introduction.

Quality Assurance and Testing Protocols

Comprehensive testing protocols ensure that board to board connectors meet specified performance requirements and maintain reliability throughout their operational lifetime. Electrical testing encompasses contact resistance measurements, insulation resistance verification, and dielectric withstand voltage testing under various environmental conditions. These tests validate the connector's ability to maintain electrical performance across temperature extremes, humidity variations, and mechanical stress conditions.

Mechanical testing evaluates the connector's durability and reliability under repeated mating cycles, vibration exposure, and thermal cycling conditions. Insertion and withdrawal force measurements ensure compatibility with automated assembly equipment while maintaining adequate retention characteristics. Environmental testing protocols subject connectors to accelerated aging conditions that simulate years of operational exposure in condensed timeframes, providing confidence in long-term reliability projections.

Cost Considerations and Supply Chain Management

Total Cost of Ownership Analysis

Effective cost analysis for board to board connectors extends beyond initial purchase price to encompass the total cost of ownership throughout the product lifecycle. Initial connector costs represent only a fraction of the overall system cost when considering assembly labor, testing requirements, and potential field failure costs. Premium connectors with superior reliability characteristics often provide better long-term value despite higher upfront costs, particularly in applications where field service access is limited or costly.

Manufacturing efficiency considerations include assembly time requirements, automated handling compatibility, and quality inspection needs. Connectors designed for efficient automated assembly can significantly reduce labor costs and improve production throughput rates. The availability of compatible assembly tooling and programming support from connector manufacturers can further enhance manufacturing efficiency and reduce time-to-market for new product introductions.

Supply Chain Reliability and Global Availability

Supply chain considerations become increasingly important as global electronics manufacturing continues to expand across multiple geographic regions. Reliable connector suppliers must demonstrate consistent quality standards, adequate production capacity, and responsive technical support across different time zones and cultural contexts. The ability to provide local inventory, technical support, and rapid delivery capabilities can significantly impact production scheduling and inventory management requirements.

Risk mitigation strategies should address potential supply chain disruptions through qualified alternate sourcing options and strategic inventory planning. Dual-sourcing arrangements with qualified suppliers provide backup options while maintaining competitive pricing leverage. Long-term supply agreements can provide price stability and guaranteed allocation during periods of high demand or material shortages that periodically affect the electronics industry.

FAQ

What are the most important factors when selecting board to board connectors for high-volume production?

The most critical factors include pitch compatibility with PCB design constraints, current and voltage ratings that match application requirements, and automated assembly compatibility for efficient manufacturing. Cost considerations should encompass total ownership costs rather than just initial purchase price, while supply chain reliability ensures consistent availability for high-volume production schedules. Quality certifications and standards compliance provide assurance of consistent performance across production lots.

How do environmental conditions affect board to board connector selection?

Environmental conditions significantly impact material selection, plating options, and sealing requirements for board to board connectors. High-temperature applications require thermally stable housing materials and contact plating systems that maintain performance characteristics. Corrosive environments necessitate enhanced plating options such as gold or specialized alloy systems. Moisture and contamination exposure may require sealed connector configurations with appropriate ingress protection ratings.

What signal integrity considerations are essential for high-speed applications?

High-speed applications require careful attention to characteristic impedance matching, crosstalk performance, and return loss characteristics across the operating frequency range. Controlled impedance designs ensure signal quality maintenance while minimizing reflections and signal degradation. Differential pair routing capabilities become essential for modern high-speed digital interfaces. Bandwidth specifications must align with data rate requirements while providing adequate margin for system-level performance variations.

How can buyers ensure long-term availability and support for selected connectors?

Long-term availability requires partnering with established connector manufacturers that demonstrate commitment to product roadmaps and lifecycle management. Standard product families typically offer better long-term support compared to highly customized solutions. Establishing relationships with suppliers that provide proactive obsolescence notifications and migration support helps manage product transitions. Multi-sourcing strategies with qualified alternate suppliers provide additional security for critical applications requiring extended product lifecycles.
