| Status | Active | Category | Wire-to-wire connector |
| Series | L200008 series | Description | L200008 series 2.0mm Wire-to-wire connector PNIRP |
| Application | Appliance connector | Component Type | Strip Connector |

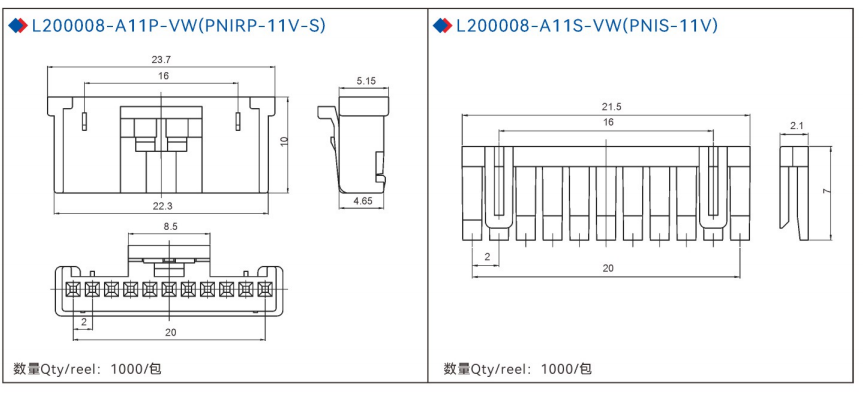

| Product Name | PNIRP-11V-S White 11-pin Female Socket 94V-0/LX | Linsine Code | L200008-A11P-VW |
| Current - Maximum per Contact | 3.0A | Voltage - Maximum | 100V |
| Circuits (Loaded) | 2~11 | Circuits (maximum) | 11 |
| Color - Resin | Natural | Flammability | UL94V-0 |
| Lock to Mating Part | Yes | Material - Metal | Phosphor bronze |
| Material - Plating Mating | Tin | Material - Plating Termination | Tin |
| Number of Rows | 1 | Net Weight | 0.55/g |
| Packaging Type | Carton | Pitch - Mating Interface | 2.0mm |
| Applicable wires | AWG28#~22# | emperature range | -25°C~85°C |
Product Test Report
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
