| Status | Active | Category | PCB Headers and Receptacles |

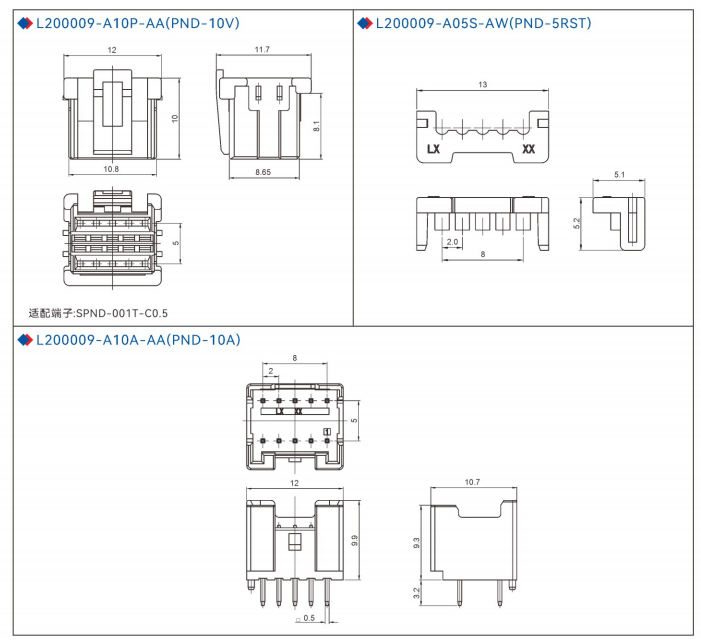

| Series | L200009 Series | Description | 2.0mm L200009 series Panel-to-Board connector |
| Application | Panel-to-Board ,Wire-to-Board | Component Type | strip-connector |
| Product Name | PND-10A White Hot Wire 750°/LX | Linsine Code | L200009-A10A-AW |
| Current - Maximum per Contact | 3.0A | Voltage - Maximum | 250V |
| Circuits (Loaded) | 10 | Circuits (maximum) | 10 |
| Color - Resin | Natural | Flammability | UL94V-0 |
| Lock to Mating Part | Yes | Material - Metal | Phosphor bronze |
| Material - Plating Mating | Tin | Material - Plating Termination | Tin |
| Number of Rows | 2 | Net Weight | 0.795/g |
| Packaging Type | Carton | Pitch - Mating Interface | 2.0mm |
| Applicable wires | AWG26#~22# | emperature range | -25°C~85°C |
Product Test Report
