| Status | Active | Category | Wire-to-wire connector |

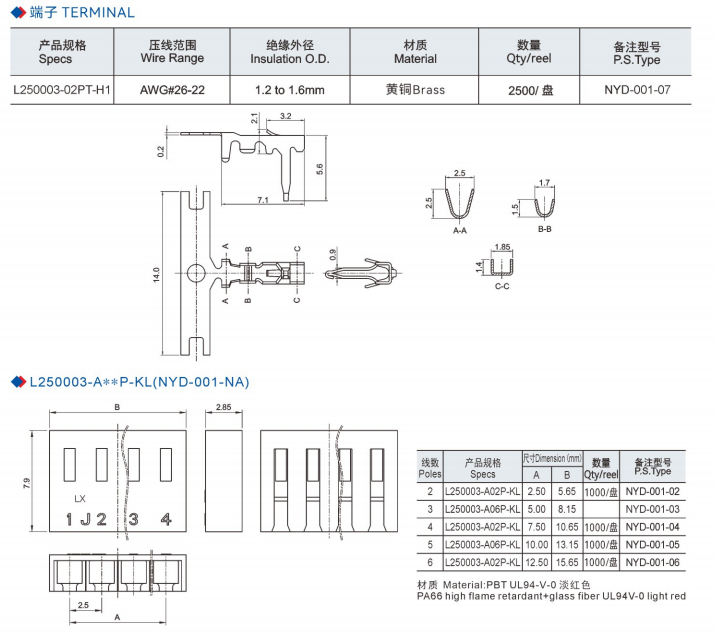

| Series | L250003 Series | Description | 2.5mm pitch L250003 series |
| Application | wire connector | Component Type | Strip Connector |
| Product Name | NYD-001-06 (OTP) Plastic - Light Red / PBT | Linsine Code | L250003-A06P-KL |
| Current - Maximum per Contact | Voltage - Maximum |
| Circuits (Loaded) | 2.3.4.5.6 | Circuits (maximum) | 6 |
| Color - Resin | light red | Flammability | PBT UL94V-0 |
| Lock to Mating Part | No | Material - Metal | Brass |
| Material - Plating Mating | Tin | Material - Plating Termination | Tin |
| Number of Rows | 1 | Net Weight | 0.252/g |
| Packaging Type | Carton | Pitch - Mating Interface | 2.5mm |
| Applicable wires | AWG26#~22# | emperature range | -25°C~85°C |
Product Test Report
