| Status | Active | Category | Connector Housings |

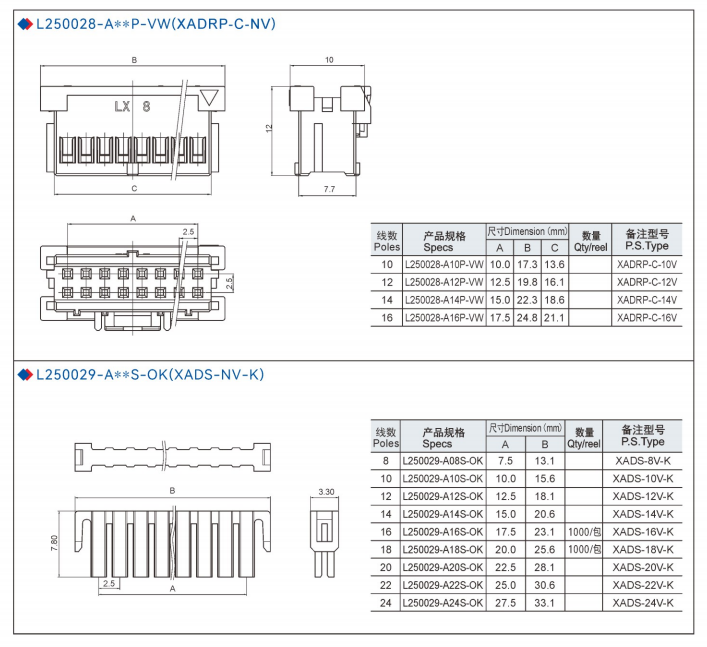

| Series | L250028 series | Description | Dual Row 2.5mm pitch 10 Circuits Natural |
| Application | Appliance connector | Component Type | Strip Connector |
| Product Name | XADRP-C-14V (2*7) White 94V-0/LX | Linsine Code | L250028-A14P-VW |
| Current - Maximum per Contact | 3.0A | Voltage - Maximum | 250V |
| Circuits (Loaded) | 10,12,14,16 | Circuits (maximum) | 16 |
| Color - Resin | Natural，Black | Flammability | UL94V-0 |
| Lock to Mating Part | Yes | Material - Metal | |
| Material - Plating Mating | Material - Plating Termination | ||
| Number of Rows | 2 | Net Weight | 1.1/g |
| Packaging Type | Carton | Pitch - Mating Interface | 2.5mm |
| Applicable wires | emperature range | -25°C~85°C |
Product Test Report
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
