strip connector 25mm l250018 seriesn1020 n1090 series-0

2.5mm spacing

Home >  Products >  Strip Connector >  2.5mm spacing

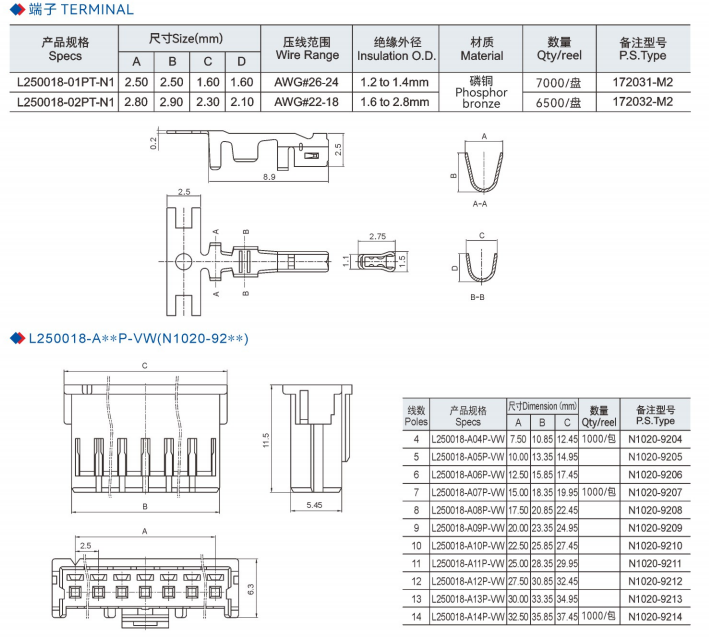

Strip Connector 2.5mm L250018 series(N1020-N1090 series)

Strip Connector 2.5mm L250018 series(N1020-N1090 series)

Get a Quote
SPECIFICATIONS
· Poles: 4~14
· Applicable wires: AWG26#~18#
· Temperature range: -25°C~85°C
· Voltage rating: 250V AC, DC
· Current rating: 3A AC, DC
· Contact resistance: ≤20mΩ
· Insulation resistance: ≥1000MΩ
· Withstand voltage: 800V.AC
· Material:

Housing: PA66 UL94V - 2(0)
Lock sheet: PA66 UL94V - 0
Terminal: Phos.bronze Tin/plated
· Terminal surface treatment: Tinning
