When working with electrical wiring systems, few components are as foundational yet as frequently misunderstood as cable terminals. These small but critical connectors serve as the interface between a conductor and a connection point, determining how reliably current flows through a circuit. Whether you are designing an industrial control panel, maintaining a distribution board, or assembling automotive wiring harnesses, the ability to differentiate between popular types and sizes of cable terminals is essential for ensuring both safety and performance.
The market offers a broad spectrum of cable terminals, each engineered for specific conductor types, voltage ranges, installation methods, and environmental conditions. Without a clear understanding of what distinguishes one variant from another, engineers and technicians risk misapplication, which can lead to increased contact resistance, premature failure, or even electrical hazards. This guide provides a structured breakdown of the most widely used types and sizing standards so that selection decisions become deliberate rather than guesswork.
The Functional Role of Cable Terminals in Electrical Systems
Why Cable Terminals Matter Beyond Simple Connection
Cable terminals are not merely mechanical fasteners. They provide a gas-tight or compressed metal-to-metal contact that minimizes oxidation at the joint, maintains consistent conductivity over time, and ensures mechanical stability under vibration or thermal cycling. The quality and type of cable terminals used directly affects the long-term reliability of the entire electrical assembly.
In industrial environments, improperly selected cable terminals can cause significant downtime. Loose or corroded connections generate heat, increase resistance, and in worst-case scenarios, become ignition sources. That is why engineers must match not only the size but also the type of terminal to the specific application context, including whether the installation is indoors or outdoors, stationary or mobile, and whether the environment contains moisture, chemicals, or mechanical stress.
Understanding the role of cable terminals extends to compliance requirements as well. Most electrical installation standards reference specific terminal types and installation practices, meaning that differentiation knowledge is also a regulatory competency. Selecting the correct cable terminals ensures that an assembly meets applicable certifications such as IEC, UL, or CSA standards.
Key Parameters That Define a Cable Terminal
Every cable terminal is characterized by a set of measurable parameters: conductor cross-section range, rated voltage, rated current, insulation material, contact material, and connection technology. These parameters collectively define the terminal's suitability for a given use case. Conductor cross-section is typically expressed in mm² or AWG, and matching this to the actual wire size is the most fundamental sizing requirement.
Rated voltage and current values tell the user the upper operational limits of the cable terminals. Exceeding these values causes dielectric breakdown or overheating of the contact. Insulation material matters for temperature resistance and chemical compatibility, while contact material—typically copper, brass, or tin-plated variants—affects corrosion resistance and contact quality.
The connection technology, which may be screw-based, spring-loaded, or crimped, further defines the mechanical and electrical characteristics of cable terminals. Each technology has its own installation requirements and maintenance profile, which we will explore in the sections that follow.
Popular Types of Cable Terminals and Their Distinguishing Features
Ring and Fork (Spade) Terminals
Ring terminals are among the most commonly encountered cable terminals in both industrial and automotive applications. They feature a circular lug at one end that fits over a bolt or stud, providing a secure mechanical connection that resists pull-out forces. Ring terminals are preferred when the connection must remain stable under vibration, as the closed ring prevents accidental disconnection even if the fastener is slightly loose.
Fork or spade terminals share a similar construction but feature an open-ended fork rather than a closed ring. This design allows the terminal to be installed and removed without fully loosening or removing the fastener, making them more convenient in applications requiring frequent maintenance or adjustment. However, they offer slightly lower retention strength compared to ring terminals, which is a trade-off to consider when mechanical stress is a concern.
Both ring and fork cable terminals are available in insulated and non-insulated versions. Insulated versions typically use color-coded sleeves—red for small gauges, blue for medium, and yellow for larger conductors—which provides a quick visual reference for sizing. This color-coding system is internationally standardized and widely adopted across industries that use cable terminals regularly.
Pin and Ferrule Terminals
Pin terminals, also known as ferrule terminals or end sleeves, are designed primarily for use with stranded conductors that need to be inserted into screw or spring-clamp terminal blocks. By crimping a metal sleeve around the conductor end, pin-style cable terminals bundle the strands together, prevent fraying, and provide a consistent, cleanly terminated wire end that fits precisely into the terminal block opening.
Ferrule cable terminals are particularly important in applications using spring-clamp terminal blocks, where loose strands could bypass the clamping mechanism and reduce contact quality. In industrial automation and control panel wiring, ferrules are virtually mandatory for professional-grade installations. They also prevent individual strands from breaking off and potentially causing short circuits in dense wiring environments.
Like ring and fork types, ferrule cable terminals follow color-coded sizing conventions. The insulated collar color corresponds to the conductor cross-section, allowing installers to quickly verify that the correct size has been applied. Ferrules are typically made from tin-plated copper with a plastic collar, combining electrical conductivity with ease of handling.
Butt Splice and Bullet Terminals
Butt splice terminals are used to join two conductors end-to-end within a wire run, creating a continuous path without the need for a junction box or terminal block. These cable terminals are cylindrical, accepting a conductor from each end, and are crimped in the center to form a secure, low-resistance joint. They are widely used in automotive, marine, and appliance wiring where inline connections must be compact and protected.
Bullet terminals consist of a male pin and a female socket connector, allowing a quick-connect and quick-disconnect function. These cable terminals are popular in automotive and recreational vehicle wiring where maintenance access requires frequent disconnection. The male bullet inserts into the female socket with a positive click or friction fit, ensuring contact under normal operating conditions while still permitting manual separation.
Both butt splice and bullet cable terminals are available in heat-shrink insulated versions, which provide an additional layer of environmental sealing. The heat-shrink sleeve contracts around the conductor when heated, gripping the wire insulation and forming a moisture-resistant barrier. This makes them well-suited for outdoor, marine, or underhood automotive environments where cable terminals face exposure to water and contaminants.

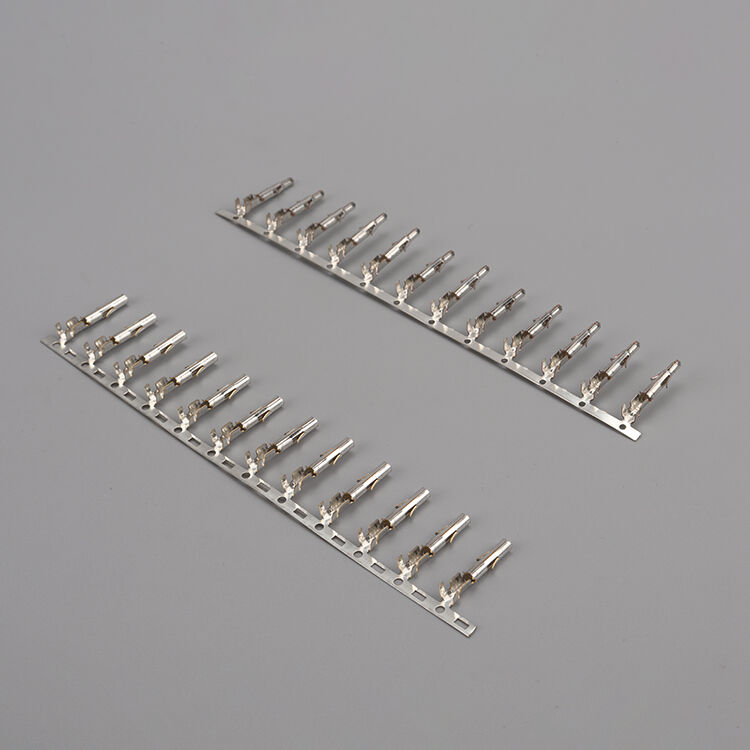

Strip Connectors and Modular Terminal Blocks
Strip connectors represent a different category of cable terminals that emphasizes modularity and panel-level organization. Rather than terminating a single wire end independently, strip connectors allow multiple conductors to be terminated in adjacent, standardized positions along a rail or board. This format is especially popular in control panels, distribution boards, and machine wiring where dozens of connections must be organized efficiently.
The cable terminals used in strip connector assemblies typically accommodate screw-clamp or spring-clamp termination technologies. Screw-clamp types require a screwdriver to tighten the clamping element around the conductor, while spring-clamp types use a built-in spring mechanism that holds the wire without tools once inserted. Spring-clamp cable terminals offer faster installation and consistent clamping force, which is an advantage in high-volume production environments.
Strip connector cable terminals are rated for specific voltage and current categories, and they are often available in grouped configurations—meaning several terminal positions can be mounted together to form a continuous strip. This modular design allows engineers to customize the terminal strip length to match the exact number of connections required, reducing material waste and improving panel aesthetics.
Understanding Cable Terminal Sizing Standards
The mm² System vs. AWG System
Cable terminal sizing is governed by two principal systems: the metric mm² system used predominantly in Europe and Asia, and the American Wire Gauge (AWG) system used in North America. Understanding the relationship between these two systems is critical when sourcing cable terminals across international supply chains or working with multinational projects that mix both standards.
In the mm² system, the number represents the cross-sectional area of the conductor in square millimeters. Common sizes for control wiring range from 0.5 mm² to 6 mm², while power cabling can extend from 10 mm² to 240 mm² or beyond. Cable terminals are manufactured to accommodate specific ranges, and using a terminal rated for a larger conductor size on a smaller wire results in inadequate clamping and a poor-quality connection.
AWG works inversely—lower numbers indicate larger conductors. For example, 4 AWG is considerably larger than 22 AWG. When converting between systems to specify cable terminals for cross-standard projects, engineers should reference published conversion charts and always verify that the selected terminal's rated conductor range covers the actual wire cross-section being used.
Matching Terminal Size to Conductor Type
Beyond raw cross-section, the type of conductor—solid or stranded—also affects cable terminal selection. Solid conductors have a single wire, while stranded conductors consist of multiple thin wires twisted together. Stranded conductors are more flexible and are commonly used in control panels and mobile equipment, but they require careful termination because the individual strands can splay or break if not properly compressed.
For stranded conductors, cable terminals with ferrule pre-treatment or integrated strain relief are recommended. Some cable terminals are specifically designed to accommodate fine-stranded conductors, which have even more individual strands and require a terminal with a larger barrel opening and more consistent compression geometry. Using a terminal designed for solid conductors on a fine-stranded wire will almost always result in unacceptable contact quality.
Temperature rating is another sizing consideration. Cable terminals are rated for specific operating temperature ranges, typically from -40°C to +105°C for standard applications, but extending to +150°C or beyond for high-temperature environments such as engine compartments or furnace control systems. Selecting cable terminals with an adequate temperature rating prevents insulation degradation and maintains contact integrity over the service life of the assembly.
Practical Differentiation Strategies for Specification and Procurement
Visual and Dimensional Identification Methods
In practice, differentiating between cable terminals often begins with visual inspection. The physical form factor—ring, fork, pin, butt splice—is immediately apparent, and color-coded insulation narrows down the size range at a glance. However, visual identification alone is insufficient for specification purposes. Engineers should always reference the manufacturer's datasheet to confirm rated parameters before selecting cable terminals for a new design.
Dimensional inspection using calipers can verify barrel inner diameter, overall length, and lug dimensions. These measurements, when compared against the datasheet specifications of cable terminals, help confirm that a component in stock or on hand matches the intended part number. This is especially important in maintenance and repair scenarios where misidentification of cable terminals from legacy assemblies could result in using an incorrect replacement.
Markings stamped or printed directly on cable terminals also provide identification information. These may include the conductor size range, voltage rating, material designation, or certification marks. Familiarity with these markings enables quick field identification, which is valuable for technicians performing inspections or troubleshooting electrical faults in complex wiring systems.
Decision Logic for Selecting the Right Type
The selection of cable terminals should follow a logical decision sequence that starts with the application context. Is the connection permanent or does it require frequent disconnection? Is the environment exposed to vibration, moisture, or chemicals? Will the wiring be installed in a panel, in an enclosure, or in an open conduit? Each of these questions guides the type selection before size consideration even begins.
For permanent panel wiring where organization and safety are priorities, strip connector-style cable terminals or ferrule-terminated conductors into terminal blocks are typically the correct choice. For field wiring that may need disconnection during maintenance, ring terminals on stud connectors or quick-disconnect bullet types serve better. For inline wire joining in protected environments, butt splice cable terminals offer a compact and reliable solution.
Once the type is selected, the sizing decision follows from the conductor specification. Using the actual measured cross-section of the conductor and matching it precisely against the terminal's rated conductor range ensures a proper crimp or clamp engagement. Undersizing cable terminals on a conductor leads to damaged insulation and poor contact, while oversizing leaves gaps that increase resistance and allow moisture ingress.
FAQ
What is the difference between insulated and non-insulated cable terminals?
Insulated cable terminals have a plastic or nylon sleeve over the barrel, providing basic protection against accidental contact with adjacent conductors and offering a degree of environmental protection. Non-insulated cable terminals are bare metal and are used where additional sleeving, heat-shrink tubing, or housing enclosure provides the required insulation. The choice depends on the application's insulation requirements and installation environment.
How do I know which size of cable terminal to use for my wire?
The correct size of cable terminals is determined by the conductor's cross-sectional area, expressed in mm² or AWG. Always match the wire's actual cross-section—not the insulated outer diameter—against the terminal's rated conductor range. Using the manufacturer's sizing chart and verifying through a test crimp before full production is standard practice in professional wiring work.
Can cable terminals be reused after removal?
Crimped cable terminals are generally considered single-use components. Once a crimp terminal is compressed onto a conductor, the metal deforms permanently around the wire strands. Attempting to remove and reuse a crimped terminal typically damages the barrel, compromises the crimp geometry, and results in an unreliable connection. Screw-type or spring-clamp cable terminals, by contrast, are designed for multiple termination cycles within their rated lifespan.
What should I check when verifying cable terminals for a high-vibration environment?
For high-vibration environments, cable terminals must be rated for mechanical resilience. Ring terminals with fully enclosed loops are preferred over fork types to prevent accidental disconnection. The crimp quality should be verified against the terminal manufacturer's crimp height specifications, as an improperly crimped terminal may loosen under vibration. Additionally, strain relief features and the use of locking hardware on stud connections help maintain cable terminals securely in challenging operating conditions.
